American Standard pneumatic valve

PRODUCTS > Pneumatic globe valve > American Standard pneumatic valve

American Standard pneumatic valve

Caliber: DN50~800mm
Features: explosion-proof, switch, positioner
High temperature resistance, high pressure resistance, corrosion resistance, wear resistance, wide range of applications
With buffer mechanism, manual conversion mechanism, flexible and reliable

Contact purchase

Technical specifications
Design basis		GB standard
Design standard		GB/12233
Structural length	Clip connection	GB/12221
Connecting flange dimension		B/9113、JB/T79
Experiment and test		GB/T13927、JB/T9092
Remark: the length and size of the series ball valve can be designed and manufactured according to the customer's requirements

Technical parameter
Nominal diameter	DN50~800mm
Connection mode	Flange
Cylinder form	Double acting, single acting (spring reset)
Control mode	Switching type, regulating type
Nominal pressure	16、25、40bar（For higher pressure, please indicate when ordering）
Gas pressure	Double action:4~8bar
Medium temperature	W3:-30~425℃ W4:-40~425
Ambient temperature	Standard type:-20~80℃
Body material	Carbon steel (C), stainless steel (P4, P6)
Sealing material	Metal hard sealing (H) and hard alloy (Y)
Remark: other special sealing material or special temperature can be designed and selected according to customer's requirements

Material list of main parts
No.	Part name	Material
No.	Part name	C	P4	P6
1	Valve body	WCB	ZG1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
2	Shim	Flexible graphite + stainless steel	PTFE	PTFE
3	Bolt	35	304	304
4	Screw valve	WCB+ surfacing 304 or stelite, PTFE	ZG1Cr18Ni9Ti PTFE	ZG1Cr18Ni12Mo2Ti PTFE
5	Ring opening	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
6	Disc cover	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
7	The stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
8	Nut	35	304	304
9	Ring bolt	35	304	304
10	Valve cover	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
11	Bolt	35	304	304
12	Shim	35	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
13	Filler	Flexible graphite	PTFE	PTFE
14	Packing plate	WCB	ZG1Cr18Ni9Ti	ZG1Cr18Ni12Mo2Ti
15	Nut	35	304	304
Remarks: the material of main components and sealing rings can be designed and selected according to actual working conditions or customers' requirements

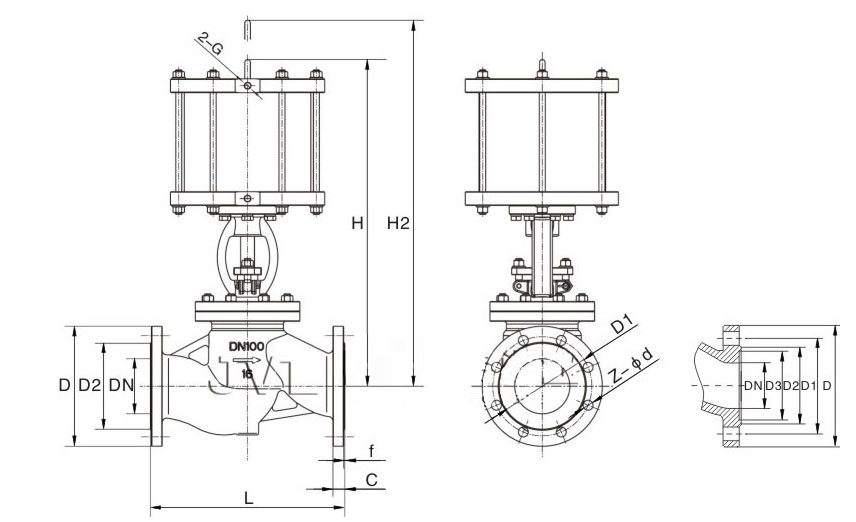

Main outline dimensions-PN16(16bar)
Nominal diameter[DN]	Outline size		Connection size						Air connection
Nominal diameter[DN]	L	H	D	D1	D2	C	f	N-D	Air connection
15	130	291	95	65	46	14	2	4-14	1/4'
20	150	300	105	75	56	16	2	4-14
25	160	353	115	85	65	16	2	4-14
32	180	390	140	100	76	18	2	4-18
40	200	518	150	100	84	18	3	4-18
50	230	555	165	125	99	20	3	4-18
65	290	630	185	145	118	20	3	4-18
80	310	683	200	160	132	20	3	8-18
100	350	745	220	180	156	22	3	8-18	3/8'
125	400	855	250	210	184	22	3	8-18
150	480	870	285	240	211	24	3	8-22
200	600	954	340	295	266	24	3	12-22
250	730	1065	405	355	319	26	3	12-26
300	850	1185	460	410	370	28	4	12-26
Note: according to the different valve torque, different air pressure and different actual conditions, choose the matching actuator, and its related Outline, size also change

Accessory selection
Solenoid valve	Double action selects two bit, five - way, single function, two - bit, five - way, single - control, double - control
Gas source treatment triple parts	Gas source for pressure regulation, filtration, cylinder lubrication
Limit switch	Remote feedback switching signal
Hand operating mechanism	The valve can be manually opened and closed
Positioner	Enter analog signals (4-20mA or 0-10V) to adjust valve opening
Remarks	The above accessories are not standard accessories. If you need to configure the order, the solenoid valve and the limit switch can be divided into explosion-proof and non explosion proof, For explosion proof, also indicate explosion protection grade

Main outline dimensions-PN25(25bar)
Nominal diameter [DN]	Outline size		Connection size						Air connection
Nominal diameter [DN]	L	H	D	D1	D2	C	f	N-D	Air connection
15	130	291	95	65	46	14	2	4-14	1/4'
20	150	300	105	75	56	16	2	4-14
25	160	353	115	85	65	16	2	4-14
32	180	390	140	100	76	18	2	4-18
40	200	518	150	110	84	18	3	4-18
50	230	555	165	125	99	20	3	4-18
65	290	630	185	145	118	22	3	8-18
80	310	683	200	160	132	24	3	8-18
100	350	745	235	190	156	24	3	8-22	3/8'
125	400	855	270	220	184	26	3	8-26
150	480	870	300	250	211	28	3	8-26
200	600	954	360	310	274	30	3	12-26
250	730	1065	425	370	330	32	3	12-30
300	850	1185	485	430	389	34	4	16-30

Main outline dimensions-PN40(40bar)
Nominal diameter [DN]	Outline size		Connection size							Air connection
Nominal diameter [DN]	L	H	D	D1	D2	C	f	N-D	D3	Air connection
15	130	305	95	65	46	14	2	4-14	40x4	1/4'
20	150	316	105	75	56	16	2	4-14	51x4
25	160	373	115	85	65	16	2	4-14	58x4
32	180	416	140	100	76	18	2	4-18	66x4
40	200	530	150	110	84	18	3	4-18	76x4
50	230	575	165	125	99	20	3	4-18	88x4
65	290	656	185	145	118	22	3	4-18	110x4
80	310	713	200	160	132	24	3	8-18	121x4
100	350	775	235	190	156	24	3	8-18	150x4.5	3/8'
125	400	892	270	220	184	26	3	8-18	176x4.5
150	480	940	300	250	211	28	3	8-22	204x4.5
200	600	1054	375	320	284	34	3	12-22	260x4.5
250	730	1115	450	385	345	38	3	12-26	313x4.5
300	850	1235	515	450	409	42	4	12-26	364x4.5

Pneumatic globe valve actuator is important in industrial automation control system, remote centralized control can meet the needs of computer program; now widely used in petroleum, chemical industry, gas equipment, nuclear power equipment, water treatment, air conditioning, iron and steel metallurgy, industrial furnace, canned equipment, brewing equipment, drying equipment, vacuum equipment, surface treatment, bio pharmaceutical, food machinery, textile, papermaking and other industries.
